High Inlet Temperature Compressed Air Dryers

Hankison HIT Series Dryers – Designed and Built To Run Reliably For Years

HIT (High Inlet Temperature) refrigerated compressed air dryers are compact with highly efficient heat exchangers, no internal mesh to foul. Heat exchange efficiency is increased by creating helix flow paths in counterflow arrangement. The two stage separator/filter removes condensed oil and water over a wide range of flows. A reliable condensate drain – air operated – automatically discharges water and oil from dryer without air loss and no timer to adjust.

Our automatic refrigeration temperature control system maintains precise chilled air temperature. Which never needs to be adjusted for load, ambient or seasonal changes. No freeze ups! A Hermetic refrigeration system requires no maintenance & no adjustments – it operates as reliably as your home refrigerator.

Hankison HIT Series Temperature Compressed Air Dryers from CFM

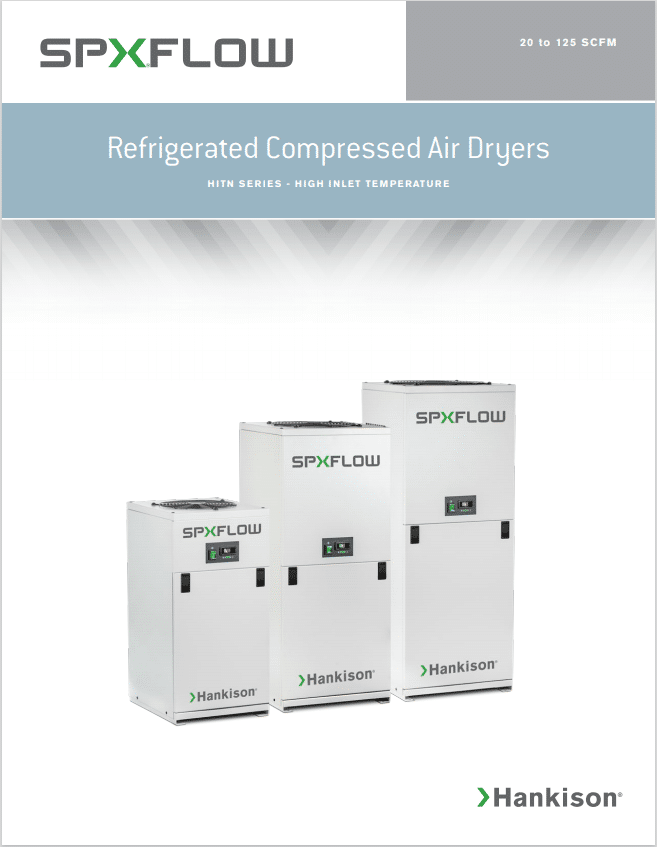

High Inlet Temperature Compressed Air Dryers Brochure

Refrigerated Compressed Air Dryers Brochure

Hankison HITN High Inlet Temperature refrigerated air dryers are designed to efficiently dry compressed air with inlet temperatures up to 180°F.

With six pre-engineered sizes to choose from, the HITN is the ideal drying solution for auto service centers and general shop air applications that use piston type air compressors 5.0 to 30 horsepower.
